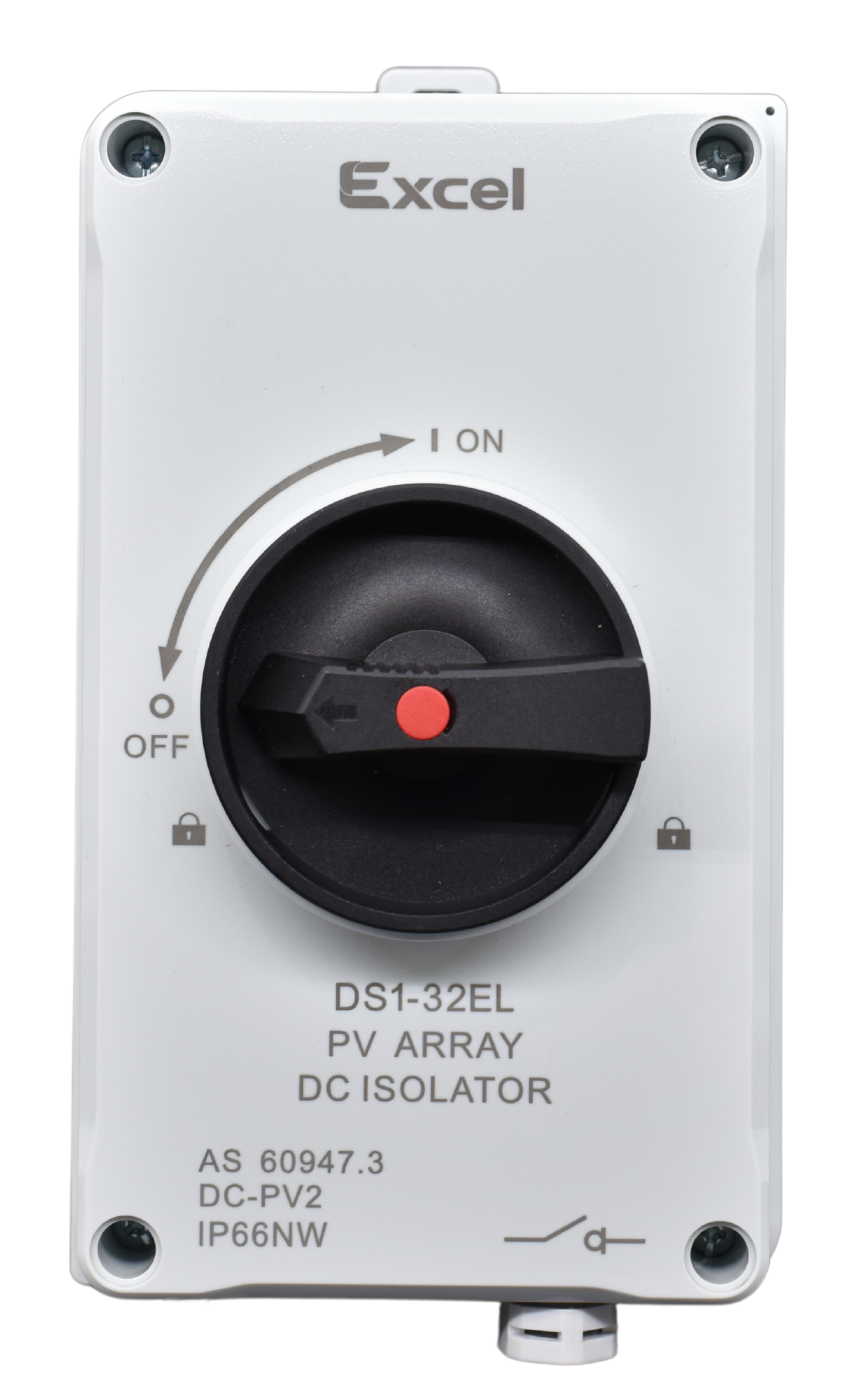

Excel range of IP65 DC rotary isolators for voltages of upto 1200V and upto 32A
These isolators are lockable in the off position for safety and can operate in either 2 pole of 4 pole configurations depending on the circuit voltage.
| E01 | blue |
|---|---|
| E02 | red |
Part Numbers
| Part No | Descriptions (Useable Ways) | Dimensions |
| RI16DC | Rotary Isolator, 16A, 4Pole, DC | 4P |
| RI25DC | Rotary Isolator, 25A, 4Pole, DC | 4P |
| RI32DC | Rotary Isolator, 32A, 4Pole, DC | 4P |
Technical parameters
| Electrical characteristic | |
| Model number | RIDC |
| Feature | Isolation and control |
| Standard | IEC60947-3, A560947.3 |
| Utilization category | DC PVL/DC PV2 |
| Pole | 4P |
| Rated frequency | DC |
| Rated operating voltage (Ue) | 300V/600V/800V/1000V/1200V |
| Rated insulation voltage (Ui) | 1200V |
| Rated short-time withstand current (lcw) | 1kA/1s(4,4S,4B) , 1.7kA/1s(2H) |
| Rated conditional short-circuit current (lcn) | 3ka |
| Rated impulse withstand voltage (Uimp) | 8.0kV |
| Overvoltage category | || |
| Polarity | No polarity,“+” and “_” polarities could be interchanged |
| Service Life/Cycle Operations | |
| Mechanical | 15000 |
| Electrical | 300 |
| Installation environment | |
| Ingress protection | IP20 |
| Storage temperature | -40°C~+85°C |
| Mountingtype | Vertically or horizontally |
| Pollution degree | 3 |
