| Part Numbers | MFS-100 |
| Maximun Load | 100A |
| Fuse Size | 22x58mm |
| Fuse Type | gG(General purpose) |
| Teminal Capacity | 35mm ² |
| IP rating | IP40 |
| Standard | IEC 60269-2 60269-3 EN 61439-3 EN 60947-3 |
| Knockouts | 32+25mm top and bottom |
| Recommended torque settings | 2.5Nm for all terminals |
| Rated Current Ie | 100A |
| Rated Operating Voltage (Ue): | 230V 50Hz |
| Number of Poles | 1P+N |
| Finish | Powder Coated Matt |
Consumer Units

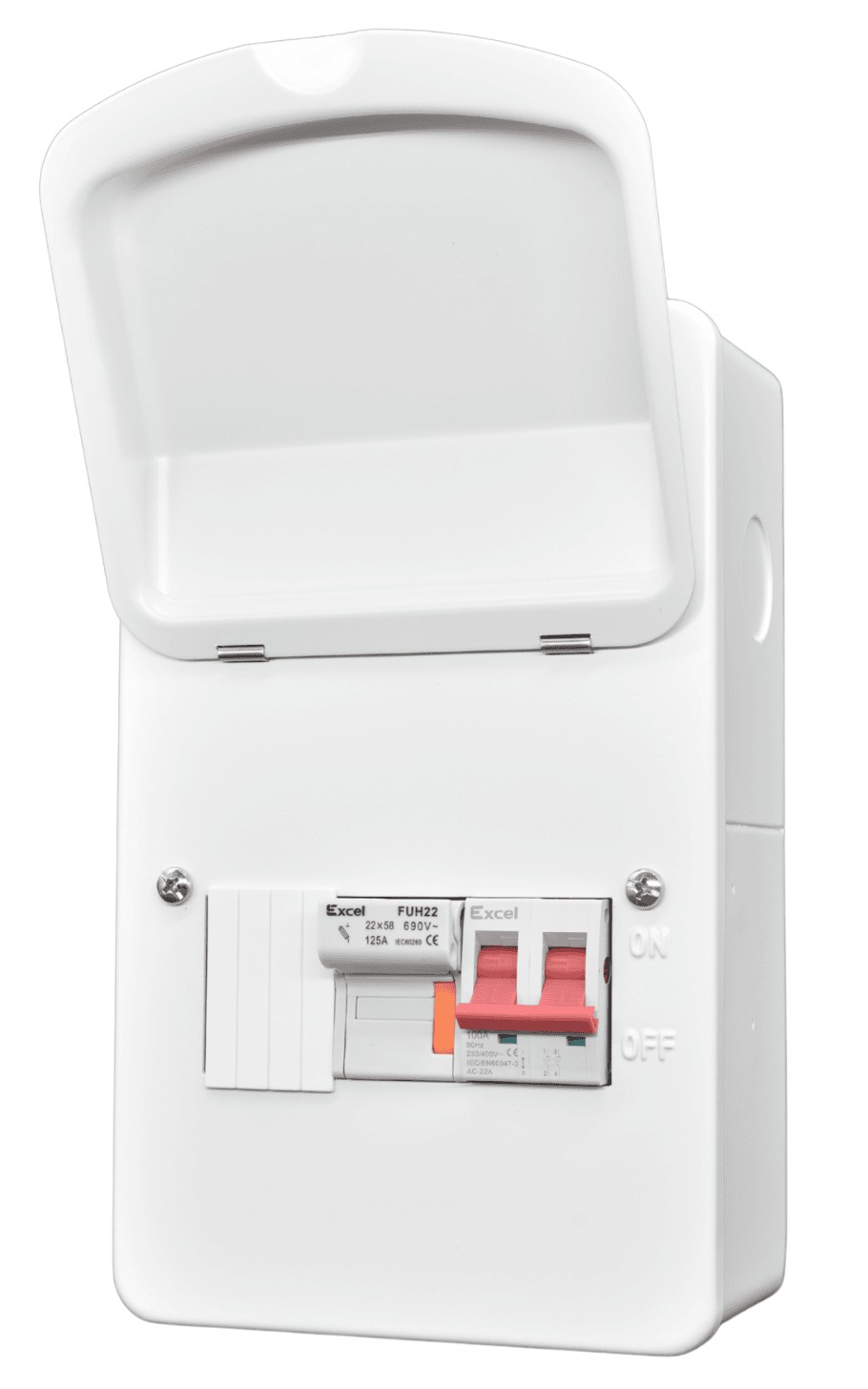

Metal Fused Switches MFS-100
Metal Fused Switches
100A Fused Switch 1P + N
(includes 63, 80, 100A Fuses)
Dimensions
Basic circuit diagram
