Weatherproof Distribution Board

Part Numbers

Part No	Descriptions (Useable Ways)	Dimensions
EP04	4 Module Plastic Enclosure IP65 with terminal bar	4P
EP08	8 Module Plastic Enclosure IP65 with terminal bar	8P
EP12	12 Module Plastic Enclosure IP65 with terminal bar	12P
EMGO05W	5 Module Metal Enclosure IP65 with terminal bar	5M

Type
Protection class	IP65
Insulation	Class ll
Materlal	polycarbonate/ABS
Shock resistance	IK10
Protection against chemicals and weather conditions	Water.saline solutions.acids.basics.mineral oils.UV rays
Operating temperature	-25C~+100C
Performance
Nominal insulation voltage	1000VAC-1500V DC

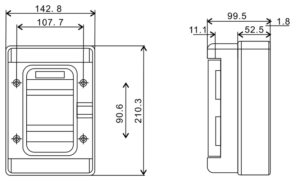

4 ways

8 ways

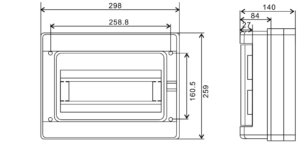

12 ways
